Flaw detection in steel is a critical process to ensure the quality and integrity of steel products. Various non-destructive testing (NDT) methods are commonly used for flaw detection in steel. Here are some key techniques:
- Ultrasonic Testing (UT):
- Principle: Ultrasonic waves are sent through the steel, and the reflections of these waves are analyzed to detect internal flaws.
- Applications: Used for detecting cracks, voids, and other internal defects in steel.

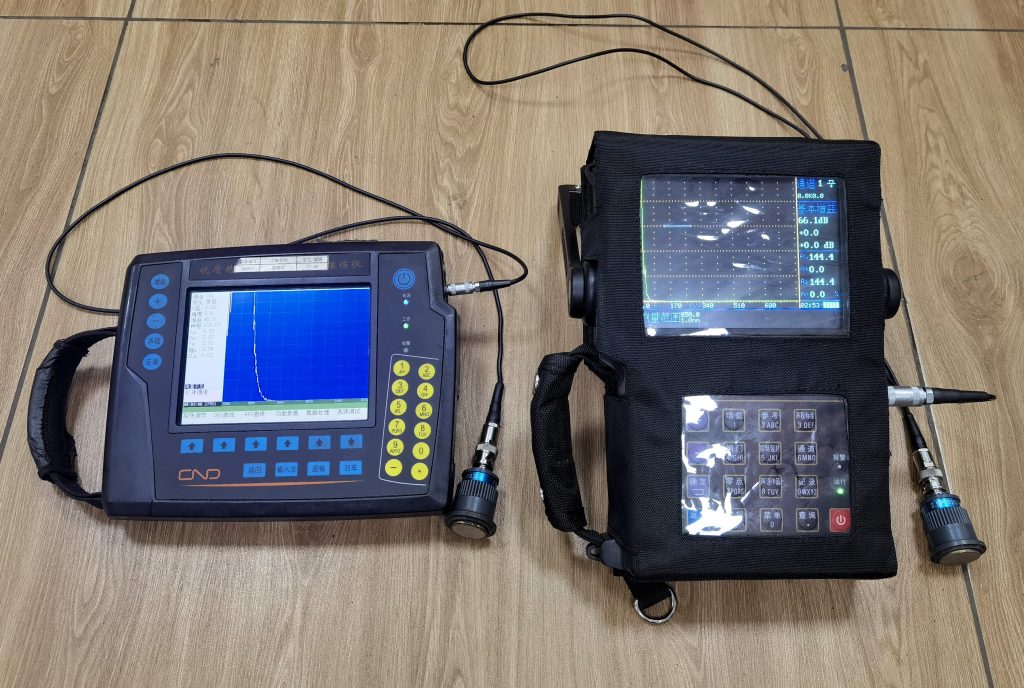

Ultrasonic Testing in steel Check the video share here: https://youtu.be/TrOGPm3o1FA
https://www.youtube.com/watch?v=TrOGPm3o1FA
- Magnetic Particle Testing (MPT):
- Principle: Magnetic particles are applied to the steel surface, and they gather at locations with magnetic flux leakage caused by surface and near-surface flaws.
- Applications: Effective for detecting surface cracks and defects.
- Radiographic Testing (RT):
- Principle: X-rays or gamma rays are passed through the steel, and a film or digital detector captures the radiation that passes through, revealing internal defects.
- Applications: Provides detailed images of internal structures, including voids and inclusions.
- Eddy Current Testing (ECT):
- Principle: Eddy currents induced by electromagnetic fields are used to detect surface and near-surface defects in conductive materials like steel.
- Applications: Detects cracks, corrosion, and other surface irregularities.
- Visual Inspection (VI):
- Principle: Inspection of the steel surface using the naked eye or optical instruments to detect visible flaws.
- Applications: Effective for detecting surface defects, such as scratches, dents, or corrosion.
- Penetrant Testing (PT):
- Principle: A liquid penetrant is applied to the steel surface, and after a certain dwell time, excess penetrant is removed. A developer is then applied to reveal the penetrant trapped in surface defects.
- Applications: Effective for detecting surface cracks and defects.
- Acoustic Emission Testing (AET):
- Principle: Monitors the acoustic emissions or stress waves produced by the material when subjected to stress. Sudden changes may indicate flaws.
- Applications: Used for detecting active flaws and monitoring materials under stress.
- Phased Array Ultrasonic Testing (PAUT):
- Principle: Uses multiple ultrasonic elements to steer and focus beams for more precise flaw detection.
- Applications: Provides detailed imaging and detection of complex flaws.
The choice of method depends on factors such as the type of flaw to be detected, the depth of inspection required, and the specific requirements of the industry or application. Combining multiple methods is often employed to ensure comprehensive flaw detection.
